Description
Herd 360 Elite Chewproof Battery Box Wiring Kit

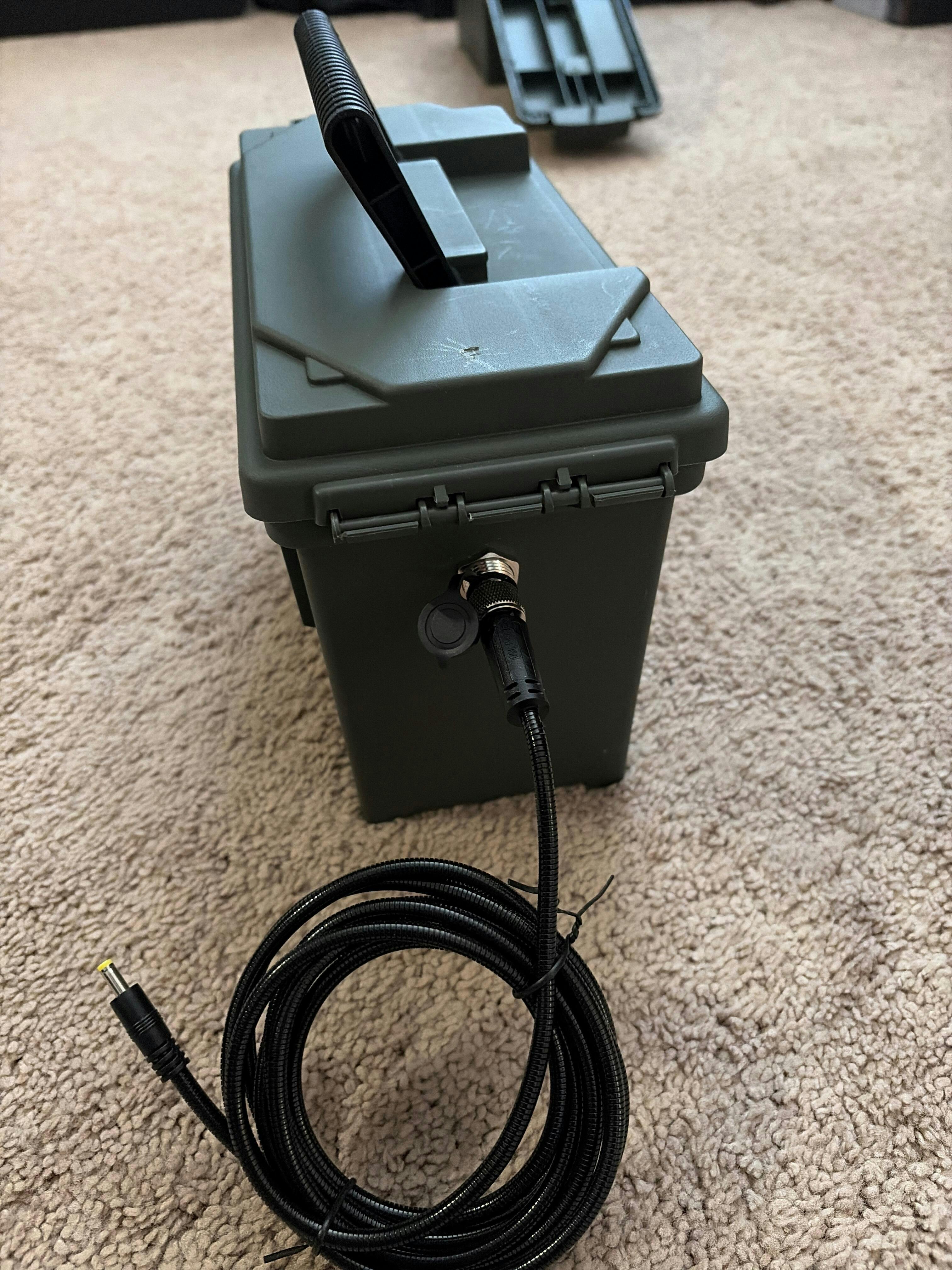

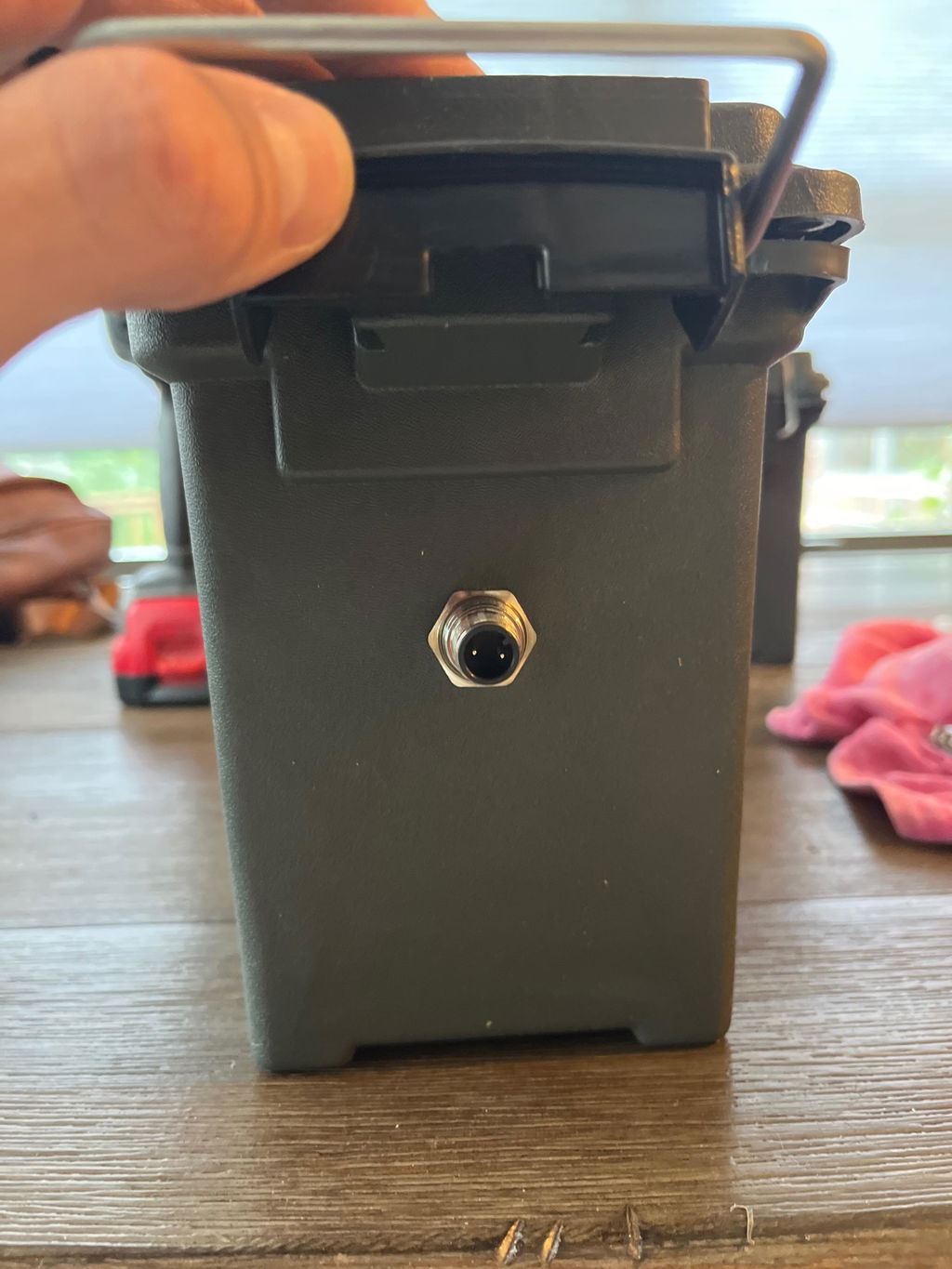

We've made it even easier to build a trail camera external 12v battery box by simplifying the installation and adding a stainless steel waterproof through the box mount and screw on connector so you can change cables as needed. For installation you will need a drill, step drill bit to drill a 5/8" hole and wrench or 18mm socket to tighten the mounting nut. (I found the best price on a step bit at Harbor Freight).
WARNING!!! PLEASE VERIFY THE CAMERA VOLTAGE REQUIRED AS SOME CAMERA MODELS USE DIFFERENT VOLTAGE FOR EXTERNAL POWER

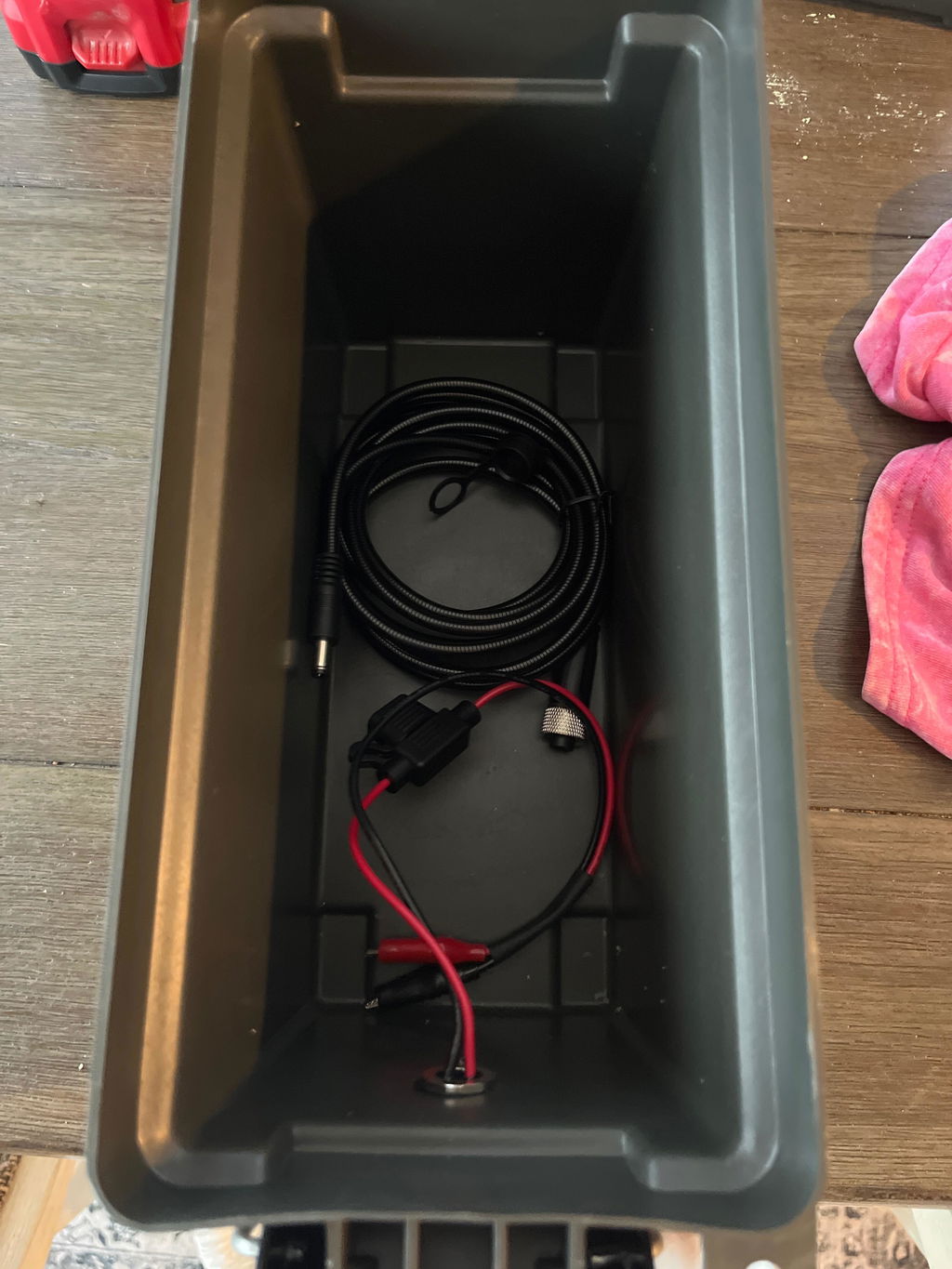

Included Items

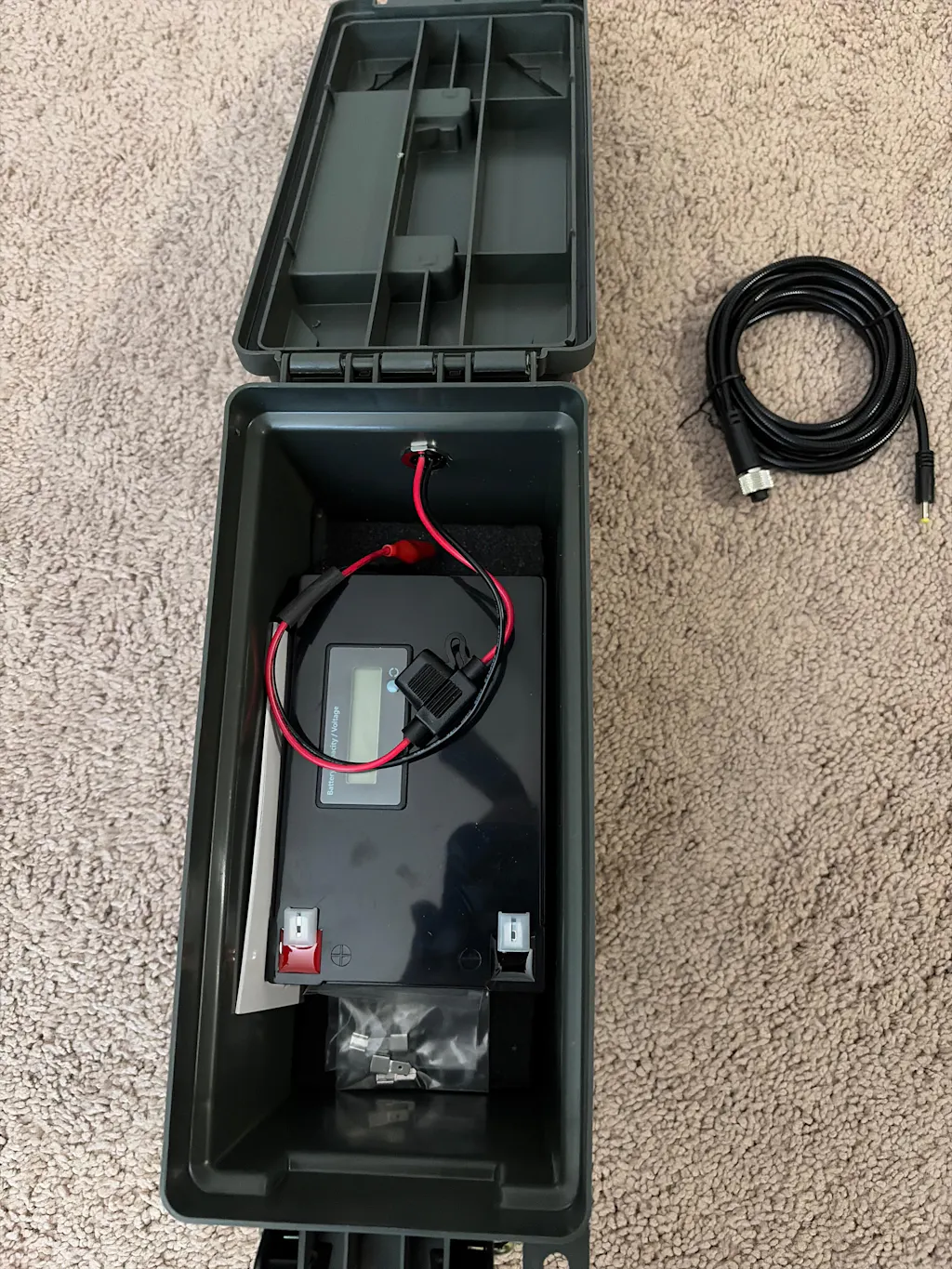

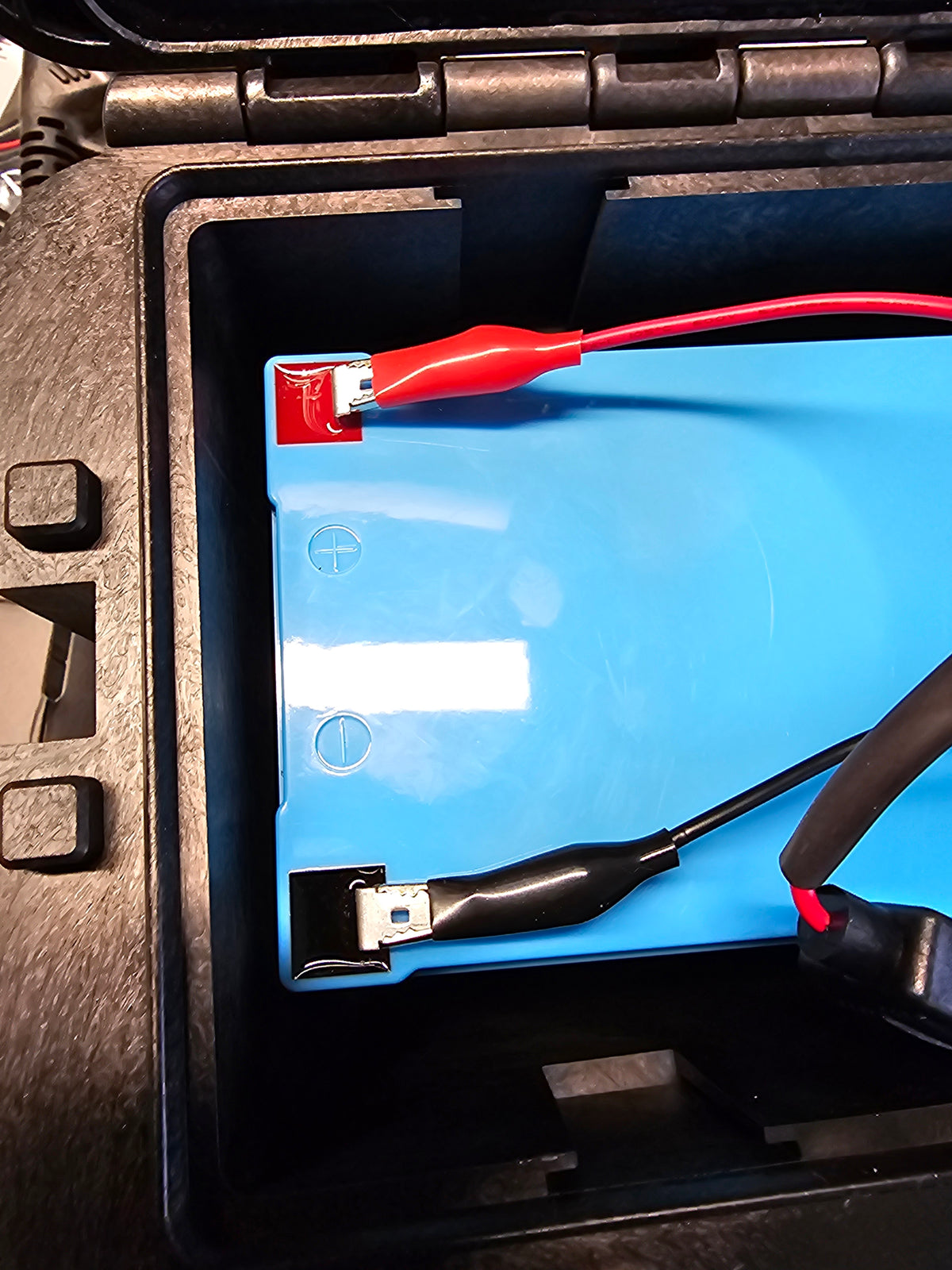

- Wire harness with stainless bulkhead threaded connector w/oring seal and alligator clip leads, fuse holder w/2amp fuse.
- Chewproof power Cable with stainless threaded connector
Camera Cable Plug Sizes and Voltage
4.0x1.7mm: Spartan GoCam 6v Spartan, Tactacam Reveal 12v, ALL Tactacam Reveal models 12v, most Cuddeback 9v, Barn Owl 12v, Wise Eye 12v Creative XP 12v, Camojojo Trace 6v
5.5x2.1mm: Browning, Spypoint, Stealth Cam, Moultrie, Covert WC30, Black Gate R4g 12v
5.5x2.1mm with Screw On Collar: fits all the Spartan Ghost and first generation of Golive models. 12v,
5.5x2.1mm extra long: Golive 2, Spartan Eclipse, Spartan Lumen, rubber on the plug needs to be trimmed back some to expose about 14mm of the silver barrel. 12v
