Description

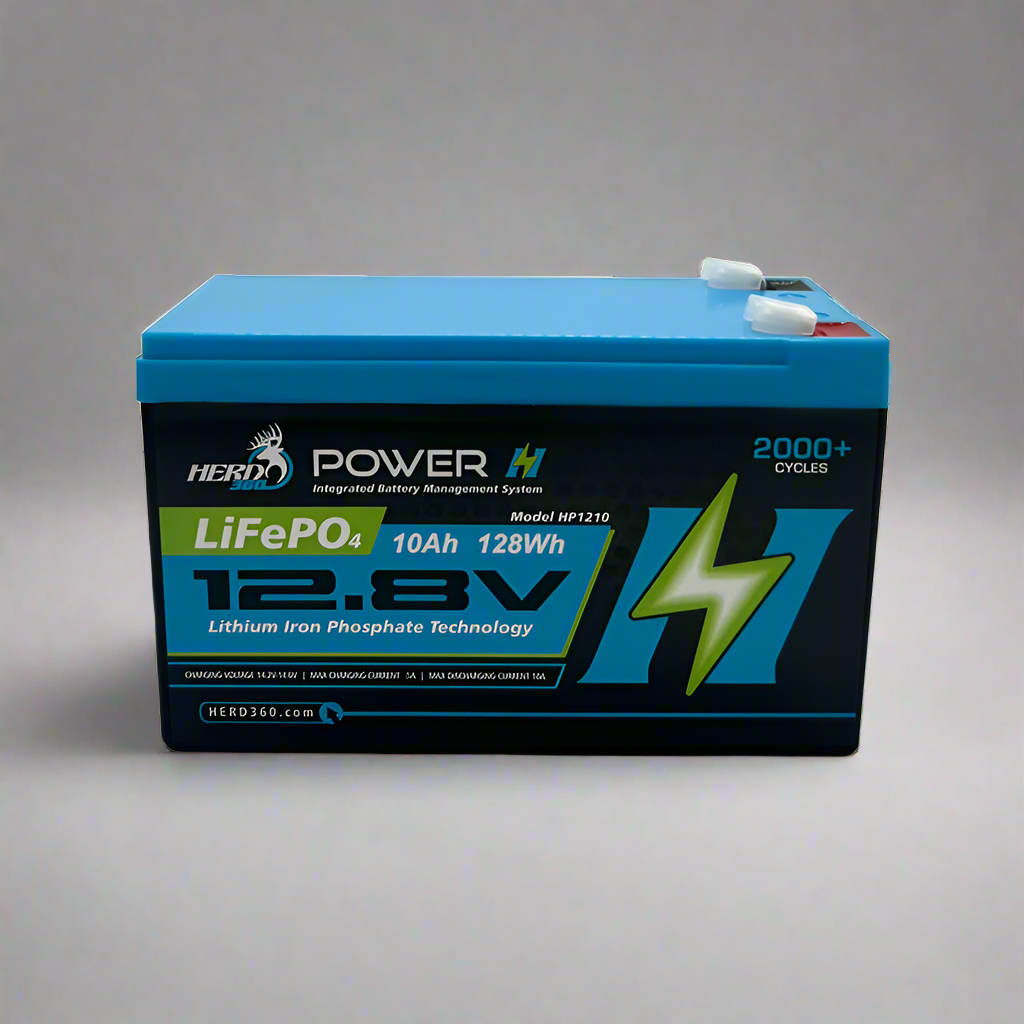

Introducing the Herd 360 10ah Lithium Battery with BMS, our latest innovation in premium batteries. With a 10ah capacity and advanced Battery Management System and compact size, you can count on longer-lasting, more reliable power and enhanced performance for all your cellular trail cameras and devices. Trust the expertise of Herd 360 for reliable, industry-leading technology.
The Herd 360 10ah Lithium Battery with BMS boasts impressive features. Made with premium Grade A high energy density cylindrical LiFePO4 Cells, this battery offers up to 20 times longer cycle life and is 40% lighter than a lead acid battery. It delivers twice the power of lead acid batteries and maintains a high energy capacity, even under high discharge rates. Its wide temperature range of -20°C to 60°C (-4°F to 140°F) makes it suitable for various environments. Most importantly, its Lithium Iron Phosphate chemistry ensures superior safety, eliminating the risk of explosion or combustion in high impact, overcharging, or short circuit situations.
Compatible with all of our battery boxes.
Charging: Use a LifePo4 BMS compatible charger.
Specifications
Model HP1210
Nominal Voltage 12.8V
Nominal Capacity 10Ah
Minimum Capacity 10Ah
Energy 128Wh
Cycle Life >2000+ cycles @0.2C 100%DOD or 5000+ cycles at 80% DOD
Months Self Discharge <3%
Efficiency of Charge 100% @0.2C
Efficiency of Discharge 96~99% @0.2C
BMS Functions Over charge, over discharge, over current, short circuit and temperature protection
Charge Voltage 14.2-14.6V
Charge Mode 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
Charge Current 4A
Max. Charge Current 10A
Standard Discharge Current 4A
Max Continuous Discharge Current 10A
Discharge Cut-off Voltage 10V±0.5V
Charge Temperature 0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity
Discharge Temperature -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature -20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
IP Class IP65
Plastic Case ABS
Approx. Dimensions L 5.945" X W 2.55" x H 3.82"mm
Approx. Weight 2.55 lbs
Warranty 5yr (first 24mths 100%, 25-60mths pro-rated)
