Description
Combining our Chewproof Elite Battery Box Wiring Kit with the Plano Small Field Box gives you a simple to build and economical 12v battery box for trailcams.
Make sure you also watch our instructional video below for assembly instructions.
Please note that it is assumed that you have some basic understanding of 12v dc electrical systems and are capable of "DIY" (do it yourself). We only sell the parts either individually or in bundles. Herd 360 LLC assumes no responsibility to damages to your equipment or self that may result.
This water resistant box will hold an SLA rechargeable battery from 6v 12ah to 12v 7 through 15ah. Or an Amped Outdoors Lithium Rechargeable 12v 15ah and 12v 20ah, Herd 360 12v 10ah, 20ah. There is enough room to store your camera and battery except when using the larger wider size batteries
WARNING!!! PLEASE VERIFY THE CAMERA VOLTAGE REQUIRED AS SOME CAMERA MODELS USE DIFFERENT VOLTAGE FOR EXTERNAL POWER

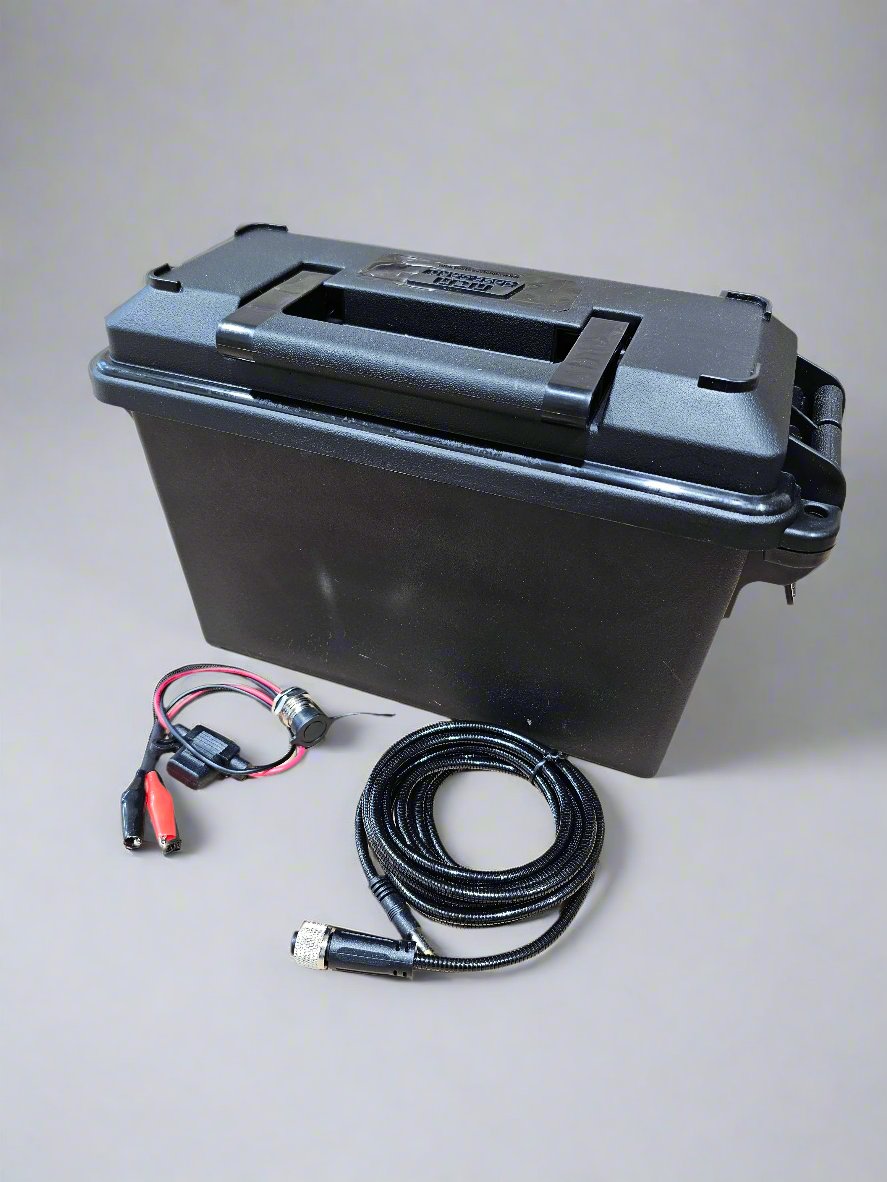

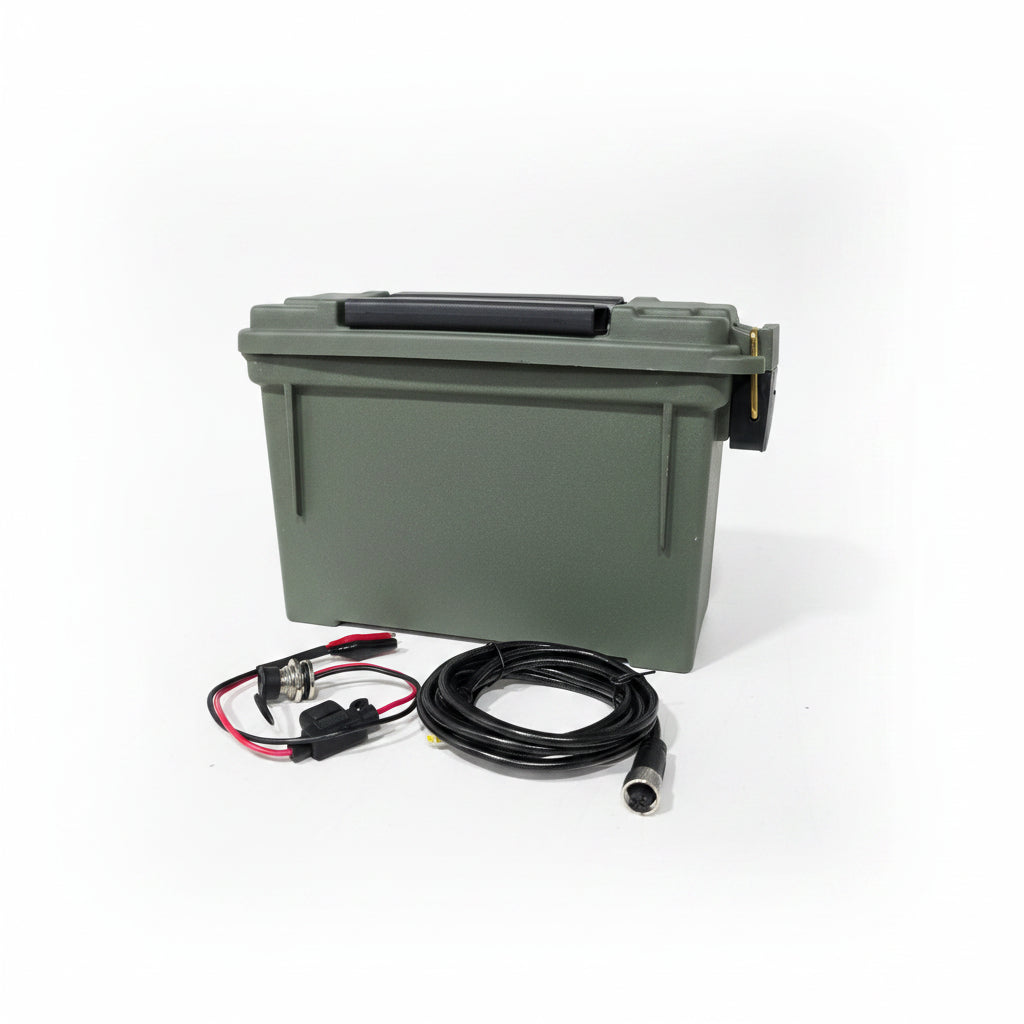

Included in this package:
- Plano Field Box Model Number: 131200
- One HERD 360 Elite chewproof cable
- One Elite wiring harness with fuse (fuse type is automotive ATM 2a) and Aligator Clips
Box Features:
- Water-resistant O-ring seal
- Brass-bailed latch for secure closure
- Heavy-duty carry handle
- Lockable
- Great for tools
- Dimensions: 11.63” x 5.13” x 7.13”
- Made in USA
Batteries that fit this box
- 12v 7ah-15ah SLA/AGM Z(12 and 15ah fit tight)
- Herd 360 Power H 12v 10ah, 20ah
- Amped Outdoors 12v 15ah, 20ah, 30ah
Camera Cable Plug Sizes and Voltage Fitment Guide
- 4.0x1.7mm fits ALL the Tactacam Reveal models including the 3.0 series 12v, Barn Owl 12v, All the Wise Eye 12v, Creative XP 12v, Covert Blackhawk 6v, Camjojo Trace 6v, Spartan Gocam 6v, all Yellowstone.ai models 12v
- 5.5x2.1mm ALL Moultrie Cameras 12v, Black Gate 12v, Browning 12v, Spypoint 12v, Stealth Cam 12v, Covert WC models 12v, Muddy Cams 12v, Ridgetec Lookout-X 12v
- 5.5x2.1mm with threaded collar Spartan Golive 1, Golive 3, Ghost, GOCAM 2 and Lumem 2.
- USB-C Moultrie Edge 3 and newer models, New solar packs with USB-C output, Moultrie Brand Rechargeable Battery Cartridges
